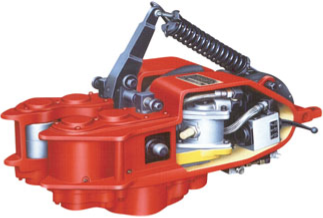

Air Safety Spinning Wrench


Air safety spinning wrench is a pneumatically powered tool for spinning drill pipe from 3-1/2 to 5-1/2 inch OD. Using the proven principal of frictional drive contact, the spinning wrench can spin drill pipe in or out quickly and efficiently without damage to expensive drill pipe and without the hazards of the dangerous spinning chain.

Model

Q250

Q200

Size Range

mm

88.9~254

88.9~139.7

in

3-1/2~10

3-1/2~5-1/2

Air Pressures

Mpa

0.5~0.9

0.5`0.9

psi

72~130

72~130

Rated Power

KW

12

8.8

HP

16

12

Spinning Speed

RPM

108~38

90~56

Overall Dimension

mm

1250*570*465

1400*530*835

in

49*23*18

55*21*33

Spinning Torque

lb.ft

403~922

465~738

Spinning Speed

rpm

108~38

90~56

Braking Torque

lb.ft

806~1,844

929~1,475

Air consumption

GPM

3,962

2,721

Hydraulic Spinning Wrench


Model

Q254-300Y

Size Range

mm

88.9~254

in

3-1/2~10

Spinning Speed

RPM

0~95
