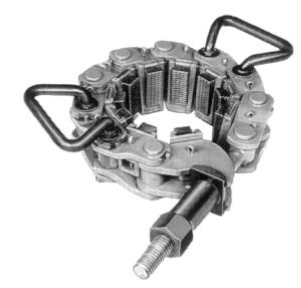

MP Multi-Purpose Safety Clamp
The MP Multi-Purpose Safety Clamp provides safe handling of all types of flush joint pipe, liners, and drill collars during make-up, break-out and setting through the rotary table. The MP Clamp can act as a shoulder elevator, if needed, or fitted with lifting eyes to handle large diameter pipe. This versatile tools can also be inverted and fitted with hold own lugs for use in all types of snubbing operations. For maximum durability and long life in the field, interchangeable handles, lifting eyes and hold own lugs are forged, heat-treated steel.
| Model | Rang (inches) | P/N | Qty | |||
| Links | Gripping Dies | lb | kg | |||
| MP-S | 2-7/8"~4-1/8" | 33030 | 7 | 8 | 83 | 37.5 |
| 4"~5" | 33031 | 8 | 9 | 91 | 41 | |
| MP-R | 4-1/2"~5-5/8" | 33011 | 7 | 8 | 81 | 37 |
| 5-1/2"~7" | 33012 | 8 | 9 | 89 | 40 | |
| 6-3/4"~8-1/4" | 33013 | 9 | 10 | 97 | 44 | |
| 8"~9-1/4" | 33014 | 10 | 11 | 105 | 47.5 | |
| 9-1/4"~10-1/2" | 33015 | 11 | 12 | 113 | 51 | |
| MP-M | 10-1/2"~11-1/2" | 33016 | 12 | 13 | 121 | 55 |
| 11-1/2"~12-1/2" | 33017 | 13 | 14 | 129 | 58.5 | |
| 12-1/2"~13-5/8" | 33018 | 14 | 15 | 137 | 62 | |
| 13-5/8"~14-3/4" | 33019 | 15 | 16 | 145 | 66 | |
| 14-3/4"~15-7/8" | 33020 | 16 | 17 | 153 | 69.9 | |
| MP-L | 15-7/8"~17" | 33021 | 17 | 18 | 173 | 78.5 |
| 17"~18-1/2" | 33022 | 18 | 19 | 181 | 82 | |
| 18-1/8"~19-3/8" | 33023 | 19 | 20 | 189 | 86 | |
| MP-XL | 19-3/8"~20-3/8" | 33024 | 19 | 20 | 196 | 89 |
| 20-3/8"~21-1/2" | 33025 | 20 | 21 | 204 | 92.5 | |
| 21"~22-5/8" | 33032 | 21 | 22 | 212 | 96 | |
| 22-5/8"~23-3/4" | 33033 | 22 | 23 | 220 | 100 | |
| 23-3/4"~24-7/8" | 33034 | 23 | 24 | 228 | 103.5 | |
| 24-7/8"~26" | 33035 | 24 | 25 | 236 | 107 | |
| 26"~27-1/8" | 33036 | 25 | 26 | 244 | 110.5 | |
| 29-3/8"~30-1/2" | 33039 | 28 | 29 | 336 | 152.5 | |
Type T Safety Clamp
Type T Safety Clamp is designed for small diameter pipe 1-1/8 thru 4-1/2 inch OD. Each link changes the effective working rang approximately 1 inch in diameter. For size larger than 4-1/2 inch OD, the Type C Safety Clamp should be used.
Total No. links required per range | Range OD Size | P/N | |
From | To | ||
4 | 1-1/8 | 2 | 7624-5044 |
5 | 2-1/8 | 3-1/4 | 7624-5045 |
6 | 3-1/4 | 4-1/2 | 7624-5046 |
Type C Safety Clamp
Item No. | Item | No. REQ'D | P/N |
1 | Link Assy, complete | As ordered | 7624-B-7 |
2 | Link, Intermediate | 1 | 7624-A-18 |
3 | Slip with Cotter | 1 | 7624-A-21 |
3A | Cotter, for slips (1/4") | 1 | 900620-52 |
4 | Slip Spring | 1 | 7624-B-21 |
5* | Link pin with cotter | 1 | 7624-C-5 |
5A" | Cotter, for link (3/16") | 1 | 900620-36 |
6 | End link (Screw) | 1 | 7624-A-20 |
7 | End link (Pivot Block) | 1 | 7624-A-19 |
8* | End link pin with Chain | 1 | 7624-F-5 |
9* | Screw | 1 | 7624-A-5 |
10* | Nut | 1 | 7624-B-5 |
11* | Nut wrench | 1 | 7624-A-25 |
12* | Pivot Block | 1 | 7624-A-5000 |
13* | Pivot Block Pin | 2 | 7624-D-5 |
14* | Pivot Block pin wrench | 1 | 900533-12 |
15* | Handle | 1 | 7624-A-6 |
16* | Handle link pin w/ Cotter | 2 | 7624-G-5 |
25* | Equipment Box | 1 | 7624-A-9 |
Total No links | Range OD sizes | P/N | |
From | To | ||
Type CR (Single Screw) | |||
7* | 3 3/4 | 4 5/8 | 7624-5007 |
8 | 4 1/2 | 5 5/8 | 7624-5008 |
9 | 5 1/2 | 6 5/8 | 7624-5009 |
10 | 6 1/2 | 7 5/8 | 7624-5010 |
11 | 7 1/2 | 8 5/8 | 7624-5011 |
12 | 8 1/2 | 9 5/8 | 7624-5012 |
13 | Feb-91 | 10 5/8 | 7624-5013 |
Type CL (Single Screw) | |||
14 | 10 1/2 | 11 5/8 | 7624-5014 |
15 | 11 1/2 | 12 5/8 | 7624-5015 |
16 | 12 1/2 | 13 5/8 | 7624-5016 |
17 | 13 1/2 | 14 5/8 | 7624-5017 |
18 | 14 1/2 | 15 5/8 | 7624-5018 |
Type CXL (Double Screw) | |||
18 | 15 1/2 | 17 | 7624-5029 |
19 | 16 1/2 | 18 | 7624-5030 |
20 | 17 1/2 | 19 | 7624-5031 |
21 | 18 1/2 | 20 | 7624-5032 |
22 | 19 1/2 | 21 | 7624-5033 |
*7-Slip clamp only carries one handle; all other type CR and CL clamps with handles carry two handles, except CXL, which carries four handles per complete clamp. | |||
