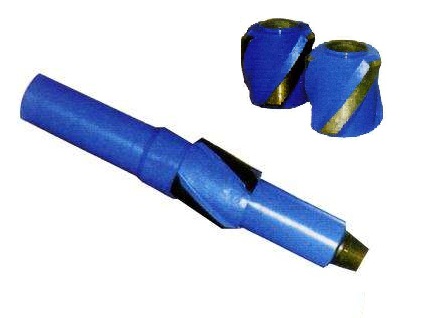

Integral Mandrel Sleeve Stabilizers
Integral mandrel sleeve stabilizers are made in two parts: One mandrel and one sleeve. The assembled by screwing the sleeve on the body and tightening these on the shoulder. The sleeve has been engineered to avoid any accidental unscrewing as to be easily replaced on rig. integral mandrel sleeve stabilizers are made in two parts: One mandrel and one sleeve. The assembled by screwing the sleeve on the body and tightening these on the shoulder. The sleeve has been engineered to avoid any accidental unscrewing as to be easily replaced on rig.
WORKING OD | FISHING OD | UP CONN. | DOWN CONN. | I.D. | FISHING LENGTH | OAL |
inch (mm) | inch (mm) | inch (mm) | inch (mm) | inch (mm) | ||
28 (711.2) | 9-1/2 (241.3) | 7-5/8REG | 7-5/8REG | 3 (76.2) | 27 (686) | 78 (1981) |
26 (660.4) | 9-1/2 (241.3) | 7-5/8REG | 7-5/8REG | 3 (76.2) | 26 (660) | 76 (1930) |
22 (558.8) | 9-1/2 (241.3) | 7-5/8REG | 7-5/8REG | 3 (76.2) | 26 (660) | 76 (1930) |
17-1/2 (444.5) | 9-1/2 (241.3) | 7-5/8REG | 7-5/8REG | 3 (76.2) | 27 (686) | 67 (1702) |
12-1/4 (311.1) | 8 (203.2) | 6-5/8REG | 6-5/8REG | 2-13/16 (71.4) | 24 (610) | 61 (1550) |
8-1/2 (215.9) | 6-1/2 (165.1) | NC50 | 4-1/2REG | 2-13/16 (71.4) | 27 (686) | 66 (1676) |
6 (152.4) | 4-3/4 (120.7) | NC38 | 3-1/2REG | 2 (50.8) | 27 (686) | 58 (1473) |
5-7/8 (149.2) | 4-3/4 (120.7) | NC38 | 3-1/2REG | 2 (50.8) | 22 (559) | 54 (1372 |
Integral Spiral Blade Type Stabilizer
Integral Spiral Blade Stabilizers is divided into string type and near-bit type according to the position differently, there are many ways to increasing abrasive resistance, eg. tungsten carbide, it owns high hardness, great toughness, high resistance and long service life.
WORKING OD | FISHING OD | UP CONN. | DOWN CONN. | ID | OAL | FISHING LENGTH | BLADE LENGTH | BLADE WIDE |
inch (mm) | inch (mm) | inch (mm) | inch (mm) | inch (mm) | inch (mm) | inch (mm) | inch (mm) | |
5-7/8 (142.9) | 4-3/4 (120.7) | NC38 | NC38 (3-1/2REG) | 2-1/4 (57.2) | 57 (1448) | 20 (508) | 16 (406) | 2-1/4 (57.2) |
8-1/2 (215.9) | 6-1/2 (165.1) | NC50 | NC50 (4-1/2REG) | 2-13/16 (71.4) | 60 (1524) | 20 (508) | 16 (406) | 2-1/2 (63.5) |
12-1/4 (311.1) | 8 (203.2) | 6-5/8REG | 2-13/16 (71.4) | 63(1600) | 20 (508) | 16 (406) | 3-1/2 (89) | |
17-1/2 (444.5) | 9 (228.6) | 7-5/8REG | 3 (76.2) | 72 1/2 (1840) | 20 (508) | 18 (457) | 4-3/4 (121) | |
22 (558.8) | 9-1/2 (241.3) | 7-5/8REG | 3 (76.2) | 93 (2362) | 30 (762) | 20 (508) | 4-3/4 (121) | |
Releasing and Circulating Overshot
The releasing and circulating overshot is simple and rugged and is strongest tool available to externally engage, pack off and pull a fish.
The internal catch mechanisms are of two basic types: a basket grapple and a spiral grapple. According to different uses, it may be equipped with some accessories, such as extension sub, wall hook, enlarged guide, etc.
Type | O.D. | Max. Catch Size (mm/inch) | Connection | |
Basket Grapple | Spiral grapple | |||
LT102 | 102(4) | 57.2(2-1/4) | 70(2-3/4) | NC26 |
LT111 | 111(3-3/4) | 60.3(2-3/8) | 76.2(3) | NC31 |
LT133 | 133(5-1/4) | 95.3(3-3/4) | 101.6(4) | NC38 |
LT146 | 146(5-3/4) | 101.6(4) | 119.4(4-11/16) | NC38 |
LT206 | 206.4(8-1/8) | 146(5-3/4) | 168(6-5/8) | NC50 |
LT245 | 245(9-5/8) | 184.2(7-1/4) | 203(8) | 6-5/8RGE |
LT270 | 269.9(10-5/8) | 200(7-7/8) | 220(8-21/32) | 6-5/8RGE |
LT286 | 285.8(11-1/4) | 203(8) | 245(9-41/64) | 6-5/8RGE |
LT340 | 340(13-3/8) | 222(8-3/4) | 267(10-1/2) | 6-5/8RGE |
Mud Saver Bucket
During the pulling of wet strings of drill pipe, the saver helps to prevent the unnecessary loss of costly drilling fluids and helps maintain a safer, cleaner work area.
This tool features quick-opening and closing latch assembly that provides an easy, quick operation. Its special sealing rubber can be easily replaced whenever necessary. The saver is equipped with a threaded side coupling. Operator can connect the coupling to the shaker pit with a hose. When the drill pipe is disconnected, the fluid will flow into the pit directly.
Specifications: 2-3/8"，2-7/8"，3-1/2"，4"，5"，5-1/2".
Reverse Circulation Junk Basket
The reverse circulation junk basket is used to retrieve all types of small junk objects in well bores. Such as bit cones, cutting blades and hand tools, etc..
During operation, with the steel ball dropped into the valve seat, fluid flow in a continuous stream to the center of the tool and up through return ports in the upper end of the barrel, all junk is thus carried into the barrel above the junk catcher.
Type | Max. O.D. | Steel Ball O.D | Connection | Hole Size Range | OAL |
LL146 | 151(5-15/16) | 35(1-3/8) | NC38 | 155.6～165.1(6-1/8～6-1/2) | 1376(54-11/64) |
LL200 | 205(5-5/64) | 43(1-11/16) | NC50 | 212.7～241.3(6-1/8～6-1/2) | 1766（69-17/32） |
LL257 | 257(10-1/8) | 48(1-57/64) | 6-5/8REG | 273～295.3(10-3/4～11-5/8) | 1770（69-11/16） |
LL280 | 286(11-1/4) | 48(1-57/64) | 6-5/8REG | 298.5～311.2(11-3/4～12-1/4) | 1846(72-43/64) |
LL381 | 381(15) | 60(2-23/64) | 7-5/8REG | 406.4～444.5(16～17-1/2) | 1780(70-5/64) |
Other Fishing & Down Hole Tools
We provide a comprehensive downhole tools and fishing tools, The tools are manufactured and inspected according to applicable API and ISO standards.
Reversing Spears X-Over Sub
Reversing Circulation Fishing Magnet Junk Sub
Kelly Valve Float Valve Sub Drilling Jar
Float Valve Casing Scraper Reamer
Downhole Motor Hole Opener Lifting Sub
