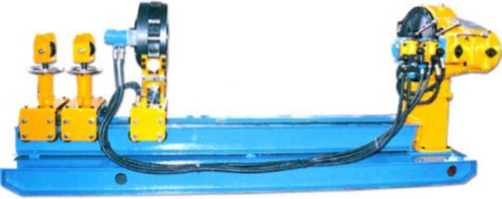

Hydraulic Make-up/Break-out Units is a kind  of machine for making up and breaking out  thread joint, which is suitable for assembly  and disassembly of downhole pump, downhole tools. tubing. sucker rod, casing and other thread joint tools. This product has the following features:

•Units' head and backup tong clips or loosens simultaneously.

•Units' head and backup tong have four planetary claws with bi-direction clipping mechanism. Do not change any part in application range.

•Automatic Torque Control system can be provided according to the request of customers.

•The backup tong is equipped with hydraulic walking mechanism which can move with tube.

•Four speeds are available.

Application Rangeφ40-152mm
Rated High Gear Torque1900ft-lbs1900ft-lbs
Rated Low Gear  Torque11050   ft-lbs11050   ft-lbs
HighGear Max. Speed64   rpm64   rpm
Low  Gear Max. Speed11   rpm11   rpm
Rated System Sressure2000   Psi2000  Psi
Max. Oil Supply120L/min
Dimension L x W×H3000×1300×1290mm            3000×1300×1280mm
