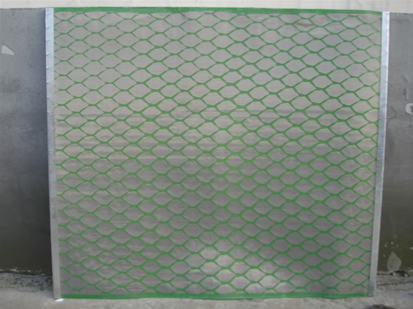

Hook edge soft vibration screen:
Hook edge soft vibration screen has a same structure of plate type screen. The screen is usually made of two or three stainless steel meshes without metal backing. the area of soft screen is bigger than plate screen, and price is lower, but the service life is shorter. We can also make screens according to customer requirements.
| Screen type | Mesh No. | Dimensions (L×W) | Shale shaker model |
| GMF-1 | 20-150 | 600×1040mm | Huayou NCS-300*2 |
| GMF-2 | 20-150 | 700×1165mm | Huayou S250 Series |
| GMF-3 | 120-210 | 1400×460mm | Huayou ZCN Series |
| GMF-4 | 120-210 | 1000×1150mm | Huayou NS-115/2 |
| GMF-5 | 20-80 | 927×914mm | JSS（U.S.A） |
| GMF-6 | 20-80 | 1219×1524mm | SSS(U.S.A) |

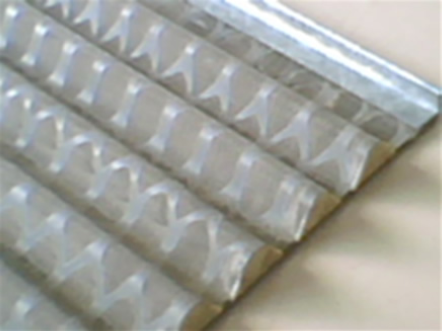

Awave vibration screen:
Awave vibration screen has an awave screen surface, Installation type can be hook edge or steel frame. the area of the awave screen is up to 125%-150% of the same area plate type screen, and the capacity increases a lot. We can also make screens according to customer requirements.
| Screen type | Mesh No. | Dimensions (L×W) | Shale shaker model |
| GMB-1(PMD) | 80-210 | 635×1253mm | BRANDT |
| BL-50 | |||
| GMB-2(PMD) | 80-210 | 697×1050mm | DERRICR |
| FLC 500 Series | |||
| GMB-3(PMD) | 80-210 | 697×1053mm | DERRICR |
| FLC2000 | |||
| GMB-4(PMD) | 80-210 | 915×1150mm | BRANDT |
| LCM-ZD |

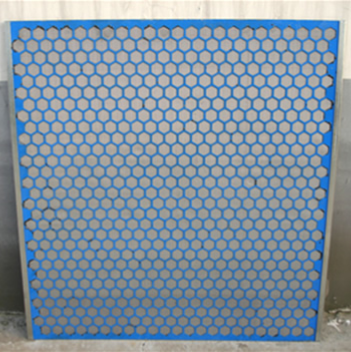

Plate type vibration screen:
Plate type vibration screen is one of the most frequent vibration screen, and be used in all kind of drilling operation. The screen is made of two or three stainless steel meshes and metal backing with holes. We have a wealth of experience and mature technology in production, can also make screens according to customer requirements.
| Screen type | Mesh No. | Dimensions (L×W) |
| GMP-1 | 16-325 | 903×1155mm |
| GMP-2 | 16-325 | 1212×1141mm |
| GMP-3（PWP） | 16-325 | 697×1050mm |
| GMP-4（PWP） | 16-325 | 697×1053mm |
| GMP-5 | 16-325 | 697×846mm |
| GMP-6（PWP） | 16-325 | 915×1150mm |
| GMP-7（PWP） | 16-325 | 720×1220mm |
| GMP-8（PWP） | 16-250 | 700×1165mm |
| GMP-9 | 16-250 | 1186×1280mm |
