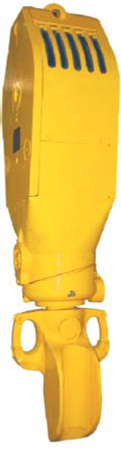

Design Features:
• Joining the travelling block and the hook together reduces overall length to satisfy the requirements of a top drive.
• The shafts of travelling block are forged with alloy steel and provided with a lubrication hole of bearing for one sheave.
• The grooves of sheave are intermediate frequency quenched so as to improve the surface hardness and prolong the service
life of wire rope.
• There is a reliable safety device at the hook.
• The hook block assembly conforms to API Spec. 8A /8C and are stamped with API monogram.
Model | YG90 | YG135 | YG170 | YG450 | |
Max. hook load | kN | 900 | 1350 | 1700 | 4500 |
O.D.of sheaves | mm (in) | 762(30) | 915(36) | 915(36) | 1524(60) |
Number of sheaves | 4 | 4 | 5 | 6 | |
Diameter of wire line | mm (in) | 26(1) | 26(1) | 29 (11/8) | 38 (11/2) |
Major-hook opening | mm (in) | 155(61/16) | 165(61/2) | 180(7) | 220(85/8) |
Major-hook Dia. | mm (in) | 116(41/2) | 140(51/2) | 150(6) | 180(7) |
Minor-hook Dia. | mm (in) | 80(31/4) | 90(31/2) | 90(31/2) | 120(43/4) |
