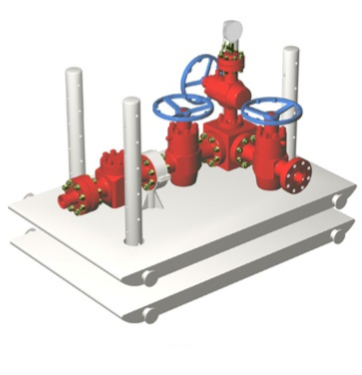

In case of wellhead pressure increasing, the kill manifold can provide a means of pumping heavy drilling fluid into the well to balance bottom hole pressure so that well kick and blowout can be prevented. In this case, by using blow down lines connected to the kill manifold, the increasing well head pressure also can be released directly for bottom hole pressure release, or water and extinguishing agent can be injected into the well by means of the kill manifold. The check valves on the kill manifold only allow injection of kill fluid or other fluids into the well bore through themselves, but do not allow any backflow so as to perform the kill operation or other operations.
The one end of the kill manifold is connected to the drilling spool and the other end is connected to the pump. Designed to API 16C and available from 14MPa, 21MPa, 35MPa and 70MPa pressure ratings.
